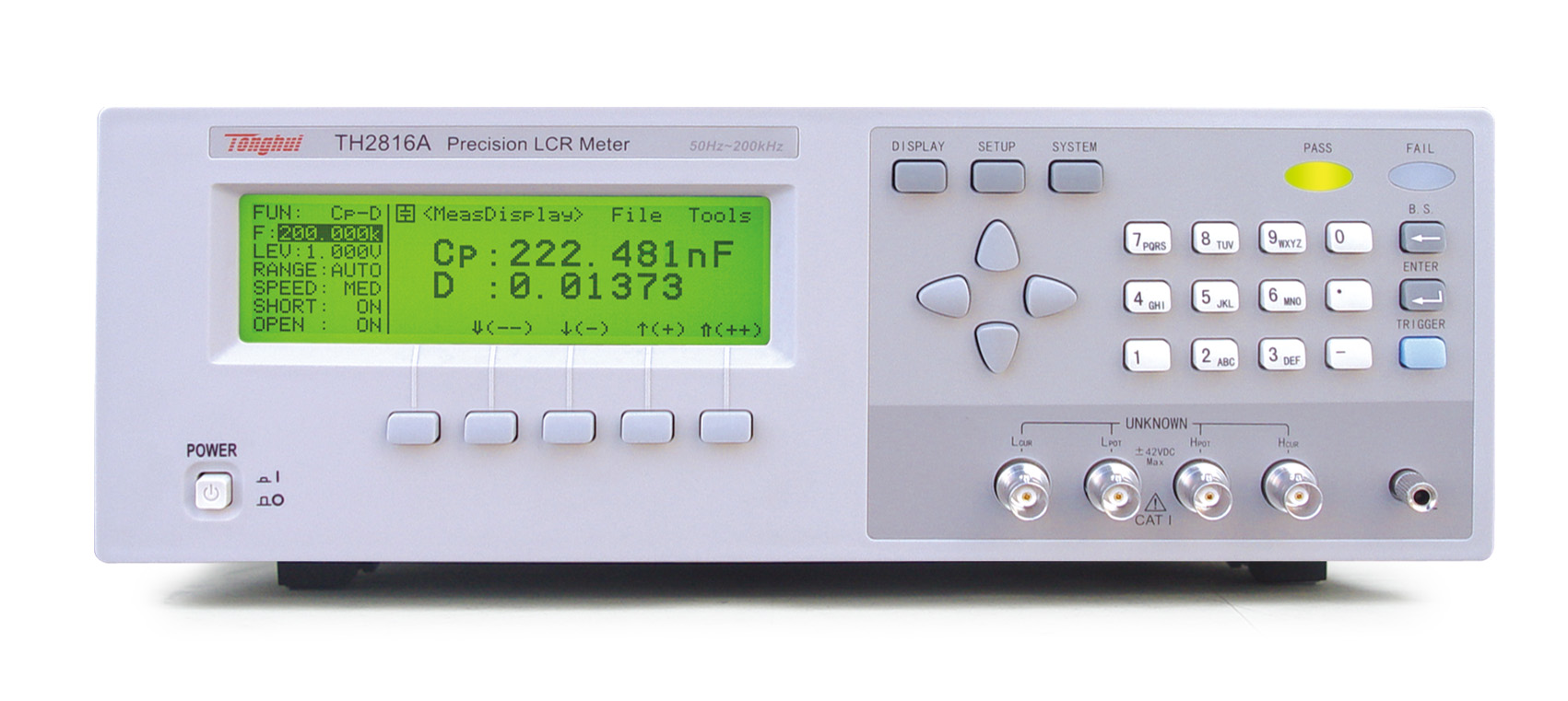

TH2816 precision LCR meter

A digital LCR meter is employed to assess the impedance present in a Device Under Test (DUT).

An LCR meter measures the following parameters related to a circuit:

· Inductance

· Capacitance

· Resistance

· Dissipation factor

· Quality factor

· Current

· Voltage

· Conductance

· Phase angle between the current and voltage

H2683A isolation resistance meter

The Insulation Resistance Test involves evaluating the insulation resistance of a test device, with its phase and neutral wires bridged. The resistance value obtained must surpass the minimum threshold set by international standards. To measure this resistance, a megohmmeter, also known as an insulation resistance tester, is utilized, which gauges the resistance of the insulator under a consistently stable direct voltage.

The CS9912A Withstand Voltage Tester assesses the maximum voltage that can be sustained by a device through a programmed procedure, testing the reliability of MLCCs and other components.

For the Capacitance with DC Bias System, a specially designed test fixture, developed in-house, is used to examine how DC bias affects capacitance.
